UA9PC/RZ9OZO Contest Station

RZ9OZO Contest station equipped with 3 el wire full size yagi on 160m
3el full size rotary yagi antenna on 80m
4 el full size rotary yagi antennas on 40m
H Frames from 20-10m

3 element full size yagi antenna on 80m
On this photo
3 element full size rotary yagi 80m band
H Frame 4x5element yagi fixed to US 20m band

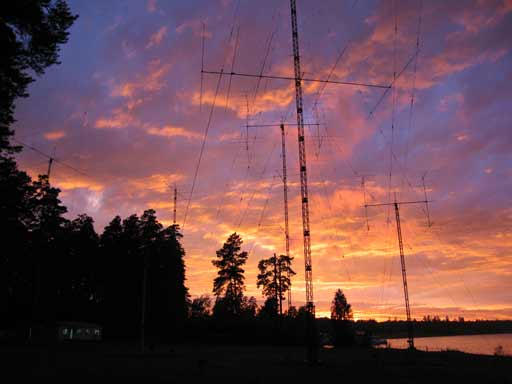

H Frames 20,15,10m band
On this picture
4el full size rotary yagi antenna 40m
H Frame 4x4 elements yagi antennas fixed to Europe 20m band
Rotary H Frame 4x5 elements yagi antenna 15m band
Rotary H Frame 4x5 elements yagi antenna 10m band

On this picture you can see
Boom of switchable East/West 3 el wire yagi antenna on 160m
Inverted Vee for 80m
5 Element yagi for 10 fixed to East
5 element yago for 15 fixed on 340 degrees
5 element yagi for 20 fixed to East
3 element yagi for 40 switchable 340 - 160 degrees.
3 element yagi for 40 switchable 280 - 100 degrees.
Tower is 65m high


Now when you will work RZ9OZO from zone 18 in contest you will know
why they are so loud :-)

Thanks to Mike UA9PM for those photos
